WOLF Heat Recovery Filters – A comprehensive guide to selecting and maintaining ventilation filters

WOLF recuperator filters are an essential part of modern ventilation systems, ensuring clean air in the home and efficient operation of recuperators. These filters trap dust, pollen, pollutants and other dirt, preventing them from entering the premises and protecting the recuperation system itself. Proper selection of filters and regular replacement are essential to ensure optimal operation of the device, durability and healthy indoor air.

The market offers a wide /lt/ 17-rekuperatoriu-filtrai">aukštos kokybės ir efektyvių sprendimų asortimentas. Filtrai1.lt rekuperatorių filtrams siūlo platų produktų asortimentą, atitinkantį ISO 16890 standartą - this guarantees that the filters operate in accordance with the strictest European air quality requirements and will effectively retain even the smallest particles.

Further in this detailed guide, we will review the types of WOLF heat recovery filters, their importance, the criteria for proper selection, replacement time, and the principles of effective maintenance that will help ensure the smooth operation of the heat recovery system and a healthy home microclimate.

Understanding WOLF heat recovery filters and their importance

WOLF is one of the leading manufacturers of ventilation systems in Europe, known for its high quality and reliability. Their heat recovery ventilation units – heat recovery ventilation units – help save energy and ensure clean air in the rooms. The filters in these systems perform a dual function – they protect the mechanism from contamination and filter the air entering the rooms.

The main advantages of WOLF filters are related to their efficiency in trapping particles of various sizes. The ISO 16890 standard, according to which modern ventilation filters are classified, defines the filter's ability to trap PM1, PM2.5 and PM10 particles (particles with a size of 1, 2.5 and 10 micrometers, respectively). The smaller the particles a filter traps, the more effective it is.

The most popular WOLF heat recovery unit models, such as the CWL 180 Excellent and CWL 300/400 Excellent, use filters specially designed for these units, ensuring optimal system performance. The price of a heat recovery unit filter depends on its class, size and other technical parameters, but the investment always pays off in better air quality and a longer service life of the unit.

Studies show that improperly filtered air can have negative health effects, especially for people with asthma, allergies or other respiratory conditions. Regular filter replacement helps reduce these risks and ensures that the recuperator works efficiently, saving energy and money.

Differences between particulate and carbon filters

WOLF heat recovery systems use two main types of filters:

• Particulate filters – designed to trap physical particles (dust, pollen, mold spores). They are classified according to their efficiency (G4/M5/F7/F9) or the newer ISO 16890 standard (ePM1, ePM2.5, ePM10).
• Carbon filters – supplemented with a layer of activated carbon, which absorbs odors, volatile organic compounds, and other chemical pollutants.

The choice depends on individual needs: if the house is located in a city with heavy traffic, it is worth choosing carbon filters; if the biggest problem is pollen or house dust, standard particle filters are sufficient.

The filters recommended for the WOLF CWL 180 Excellent system ensure excellent performance in small apartments or houses. /lt/ 175-wolf-cwl-180-excellent-filtru-komplektas.html">Wolf CWL 180 Excellent FILTRŲ KOMPLEKTAS (290x136x5) · 13,68 € is the optimal choice for this model, guaranteeing high-quality filtration and a long service life.

How to choose the right filter for your WOLF heat recovery unit

When choosing the right filters for a WOLF heat recovery unit, it is important to consider several key criteria that will ensure optimal system performance and good air quality in the home.

First of all, it is necessary to make sure that the filter exactly matches your heat exchanger model. WOLF produces heat exchangers in different sizes, and each model requires filters of specific dimensions. An incorrectly sized filter can lead to air leakage or improper system operation.

Secondly, it is important to consider the filtration class according to the ISO 16890 standard. Depending on your needs and environmental conditions, you can choose:

• ePM10 (formerly G4) – for primary filtration, trapping larger particles;
• ePM2.5 (formerly M5) – for medium-efficiency filtration;
• ePM1 (formerly F7/F9) – for high-quality filtration, especially important for allergy sufferers.

The Wolf CWL 300/400 Excellent models require larger filters than the CWL 180 series. When choosing filters for these models, it is worth paying attention not only to the dimensions, but also to the filtration efficiency, especially if people with allergies live in the house or the environment is highly polluted.

Instructions for replacing recuperator filters are usually simple - in most cases, it can be done independently, without the help of specialists.

You just need to open the dedicated panel of the recuperator, remove the old filters and install new ones, paying attention to the marking of the air flow direction.

More detailed information about different /lt/ 28-wolf-filtrai">Wolf filtrai; Wolf CWL 180 Excellent FILTRŲ KOMPLEKTAS (290x136x5) · 13,68 €; Wolf CWL 300/400 Excellent FILTRŲ KOMPLEKTAS (525x185x5) · 15,62 €; Wolf CWL 300B models and their technical parameters can be found in specialized stores.

Overview of WOLF filter models and compatible replacement kits

Below is an overview of the main WOLF heat recovery unit models and the filters suitable for them:

When choosing filters online, it is recommended to confirm dimensional compatibility with your existing system, especially if the recuperator is an older model or has a non-standard configuration.

When is it time to change the WOLF heat recovery filter?

Knowing when to change your air handling unit filter is important to ensure optimal system performance and good air quality. There are several clear signs that indicate it is time to change the filters.

First of all, many WOLF heat exchangers have built-in indicators that indicate when the filters need to be changed. This can be a timer, a pressure difference sensor or simply a warning on the control panel. Pay attention to these messages and do not delay changing the filters.

Obvious signs that a ventilation filter has reached the end of its service life:

• Reduced airflow from ventilation openings
• Increased noise in the system during operation
• Increased dust levels in the home
• Increased fan performance, increased energy consumption
• Allergy symptoms that were not felt before
• Visible dust or dirt on the filter itself
• Unpleasant odors coming from the ventilation system

The standard filter replacement interval for recuperators is every 3-6 months, but this depends on many factors: environmental pollution, seasonality (filters may need to be changed more often during the pollen season), home environment (pets, smoking), and ventilation intensity.

If you notice any of the above signs, it is recommended to replace the filters immediately. /lt/ 176-wolf-cwl-300-400-excellent-filtru-komplektas.html">Wolf CWL 300/400 Excellent FILTRŲ KOMPLEKTAS (525x185x5) · 15,62 € is an excellent choice for larger WOLF recuperators, ensuring effective air filtration and smooth system operation.

Indoor air quality is directly related to the health and well-being of residents, so maintaining recuperator filters should be a regular household task, like other necessary maintenance tasks.

WOLF heat recovery filter maintenance: best practices and tips

Proper maintenance of WOLF heat recovery filters is essential to ensure long-term system efficiency and good air quality in the home. In this section, we provide practical recommendations and tips on how to properly maintain the filters.

Recommended filter maintenance schedule:

• Monthly: Visually check the condition of the filters
• Every 3 months: change filters under heavy use conditions or if the environment is very polluted
• Every 6 months: change filters under normal conditions
• Once a year: Perform a general inspection of the system, including filter holders and gaskets

The cost of a recuperator filter is small compared to the benefits of regular replacement – a cleaner home environment, lower energy costs, and longer device life.

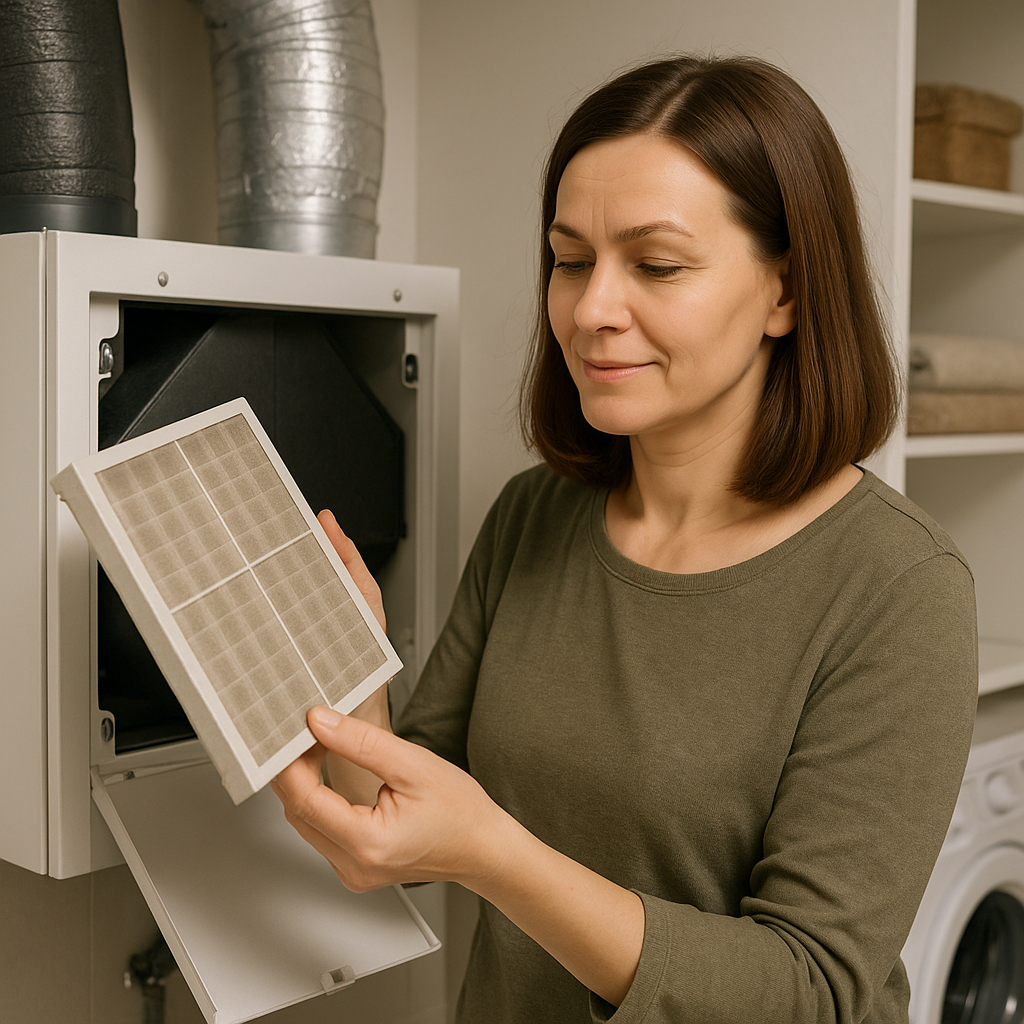

Filter replacement instructions are usually straightforward:

1. Turn off the heat recovery system.
2. Open the filter panel (usually on the front of the unit)
3. Carefully remove the old filters
4. Check the filter holders for accumulated dirt, clean if necessary.
5. Install new filters, paying attention to the airflow direction (usually marked on the filter)
6. Close the filter panel and turn on the system.
7. Reset the filter change timer, if any.

It is important to note that not all filters are washable or reusable. Most WOLF heat exchanger filters are disposable and should be replaced, not washed. Washing non-consumable filters can damage their structure and reduce filtration efficiency.

Seasonal adjustment of filter maintenance is also important:

• In the spring: use higher-class filters during pollen season
• In summer: check regularly for increased dust levels
• In the fall: prepare for the heating season by changing the filters
• In winter: watch for moisture or condensation on the filters

HVAC specialists recommend that, along with changing the filters, other parts of the heat exchanger – fans, heat exchangers and condensate drainage systems – be checked. This will help ensure that the entire system is operating optimally and efficiently.

Mark filter replacement dates on your calendar or use mobile apps to remind you when it's time to replace your filters. Regular maintenance will reduce the likelihood of unexpected failures and ensure consistent efficiency.

Conclusions

WOLF heat recovery filters are an essential part of a heat recovery ventilation system, ensuring efficient operation and a healthy air environment in the home. Proper filter selection and regular maintenance are essential to maximize the benefits of the heat recovery system.

To summarize the most important aspects:

• Always choose filters that match your specific WOLF heat recovery unit model.
• Consider the ISO 16890 standard and filtration class when choosing according to your needs
• Change filters regularly (every 3-6 months) or when you notice a decrease in system efficiency.
• Pay attention to changes in air quality in your home as a possible sign that it's time to change your filters.
• Follow the manufacturer's recommendations for filter maintenance and replacement.

Investing in high-quality WOLF recuperator filters and their regular replacement will pay off not only in better air quality and health benefits, but also in a longer system life and lower energy costs.

Regularly check your filters and plan their replacement based on seasonal needs and environmental conditions. This will ensure that your WOLF heat recovery unit operates efficiently and maintains an optimal microclimate in your home, contributing to the well-being of all residents.

Frequently asked questions

How often do WOLF heat recovery filters need to be changed?

Many experts recommend changing filters every 3-6 months, but the frequency may vary depending on home conditions and the specific WOLF model. It is always worth checking the manufacturer's recommendations.

Are all WOLF heat recovery unit filters interchangeable between different models?

No, the size and type of filters depend on the specific WOLF heat recovery unit model. Always confirm compatibility before purchasing.

Why is ISO 16890 certification important for ventilation filters?

ISO 16890 ensures that the filter effectively captures particulate matter, protecting both equipment and indoor air quality.

Can WOLF ventilation filters be cleaned and reused?

Most filters are designed for single use – replacing them is safer and maintains optimal filtration. Reusing non-washable filters can compromise system performance.

Where can I buy original WOLF recuperator filters online?

Several online vendors offer certified filters: look for reputable stores that provide compatibility guidelines and list approved products.
