VALLOX 90 SE/MC/MV FILTER SET (245X212X48)
€11.62
Date sheet
- Dimensions (mm)
- 245x212x48
- Delivery of goods
- € 2.90 (free shipping from € 50)
- Vallox models
- 90 SE/MC/MV

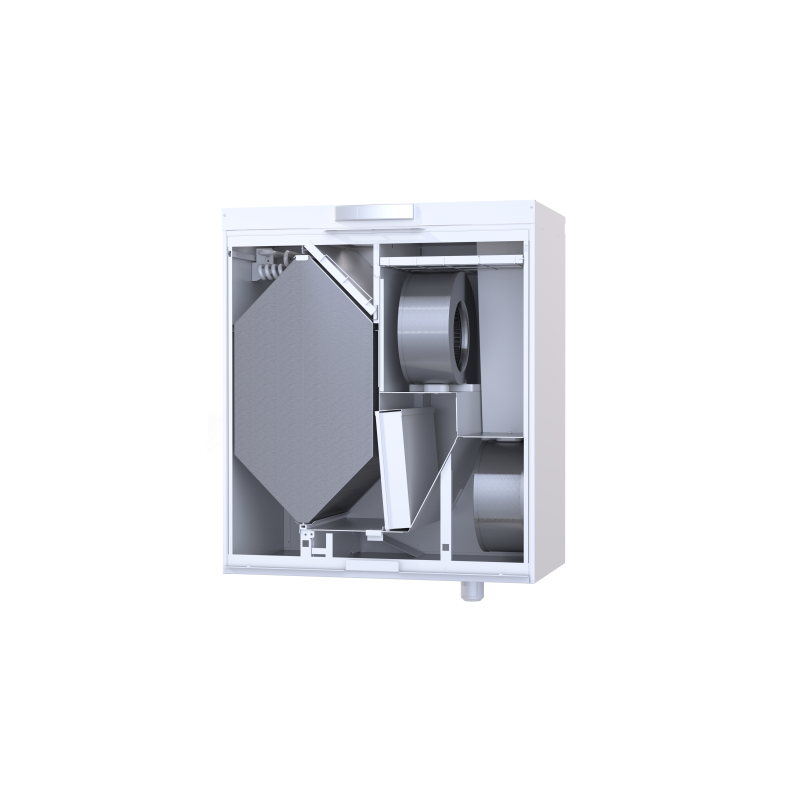

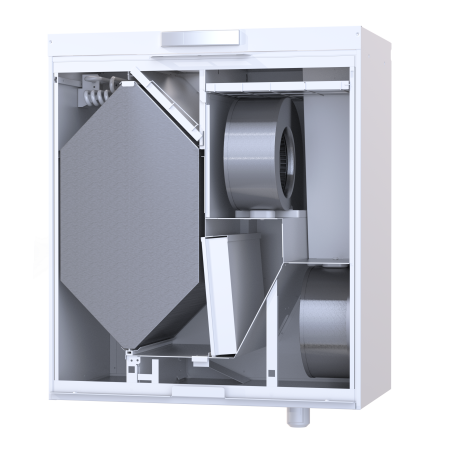

Filter set suitable for Vallox 90 SE/MC/MV (245x212x48) heat exchanger. The filter set is designed to filter supply and exhaust air.
The set includes:
- The standard set includes two filters (G4+G4), which are suitable instead of the original Vallox 90 SE/MC/MV filters. (320x200 and 315x265)
- The effective set consists of three filters (G4+G4+F7), which are suitable for replacing the original Vallox 90 SE/MC/MV filters and ensure a higher level of purification of the supplied air.
Differences between F7 and G4 filters:
- G4 compact filter used for filtering supply and extract air, retaining medium-sized particles (average protection against 10 μm solid particles).
- The F7 compact filter is used only for filtering the supply air, retaining extremely fine particles (effective protection against 0.3 μm solid particles).
The filters are suitable for the following Vallox models:
Vallox 90 SE/MC/MV.
Vallox 90 SE/MC/MV filter set specification:
- Filter dimensions (G4) - 320x200 and 315x265.
- Filter dimensions (F7) - 245x212x48.
- Made in Lithuania
- Moisture-proof cardboard frame
- ECO green
- Large filtration area
- Meets VDI6022 hygiene class
- Complies with DIN53438 flammability class
- Complies with ISO16890 standard
- Complies with EN779:2012 standard
Recommendation:
- It is recommended to change the heat exchanger filters at least 2-3 times a year.
ECO green
Filtrai1.lt filters have “ECO green” properties. The filters are made from recycled and durable materials.
Hygiene standard VDI6022
The filters we sell comply with the ventilation hygiene standard VDI6022. The standard ensures that the filter materials do not allow bacteria to grow.
Flammability DIN53438 classification
Filters sold at Filtrai1.lt are tested and have the appropriate flammability classification.
The filters are made using the unique DEEP PLEAT technology.
Thanks to this technology:
- The material maintains the correct V shape when crimped
- Maximum filter material area utilized
- Extends filter life and efficiency
Discount:
Buy 10 sets or more and contact us for a better price
| Filter Type / EN 779 | ISO 16890 | >10 µm | PM10 | PM2.5 | PM1 | Gas/LOI | Typical Pollutants |
|---|---|---|---|---|---|---|---|
| G1 | ISO Coarse | ~40% | <10% | ~0% | ~0% | Large dust: sand grains, textile fibers, carpet lint, plant residues, insect parts, etc. | |
| G2 | ISO Coarse | ~50% | <15% | ~0% | ~0% | Sawdust, hair, large fabric shreds, paint chips, surface rust particles. | |
| G3 | ISO Coarse | ~60% | <25% | ~5% | ~0% | Larger household dust, lint, animal hair, some airborne pollen. | |
| G4 | ISO Coarse | 65-75% | 25-35% | 10-15% | <5% | Larger pollen grains, soil and sand impurities, textile fibers. | |
| M5 | ISO ePM10 ≥50% | ~80% | 50–65% | 20–30% | 10–15% | Most pollen, mold spores, pet dander, typical house dust. | |
| M6 | ISO ePM10 (60–80%) | ~90% | 65–80% | 30–45% | 15–25% | Construction material dust, concrete and cement powders, ash and other friable material particles. | |
| F7 | ISO ePM2.5 (50–65%) | >90% | 75–90% | 50–65% | 30–45% | Some bacteria, smog and tobacco smoke particles, combustion product dust, mold spores, wildfire smoke. | |
| F8 | ISO ePM2.5 (65–80%) | >95% | 85-95% | 65–80% | 45-60% | Fine fungal spores, airborne pollutant aerosols and other fine solid particles. | |
| F9 | ISO ePM1 (80-95 %) | >95% | >95% | >90% | 80-95% | Diesel engine soot, some airborne viruses, transport and industrial fumes, very fine combustion particles, extremely fine dusts and secondary organic aerosols formed from chemical reactions in the atmosphere. |
Filter set suitable for Vallox 90 SE/MC/MV (245x212x48) heat exchanger. The filter set is designed to filter supply and exhaust air.
The set includes:
- The standard set includes two filters (G4+G4), which are suitable instead of the original Vallox 90 SE/MC/MV filters. (320x200 and 315x265)
- The effective set consists of three filters (G4+G4+F7), which are suitable for replacing the original Vallox 90 SE/MC/MV filters and ensure a higher level of purification of the supplied air.
Differences between F7 and G4 filters:
- G4 compact filter used for filtering supply and extract air, retaining medium-sized particles (average protection against 10 μm solid particles).
- The F7 compact filter is used only for filtering the supply air, retaining extremely fine particles (effective protection against 0.3 μm solid particles).
The filters are suitable for the following Vallox models:
Vallox 90 SE/MC/MV.
Vallox 90 SE/MC/MV filter set specification:
- Filter dimensions (G4) - 320x200 and 315x265.
- Filter dimensions (F7) - 245x212x48.
- Made in Lithuania
- Moisture-proof cardboard frame
- ECO green
- Large filtration area
- Meets VDI6022 hygiene class
- Complies with DIN53438 flammability class
- Complies with ISO16890 standard
- Complies with EN779:2012 standard
Recommendation:
- It is recommended to change the heat exchanger filters at least 2-3 times a year.
ECO green
Filtrai1.lt filters have “ECO green” properties. The filters are made from recycled and durable materials.
Hygiene standard VDI6022
The filters we sell comply with the ventilation hygiene standard VDI6022. The standard ensures that the filter materials do not allow bacteria to grow.
Flammability DIN53438 classification
Filters sold at Filtrai1.lt are tested and have the appropriate flammability classification.
The filters are made using the unique DEEP PLEAT technology.
Thanks to this technology:
- The material maintains the correct V shape when crimped
- Maximum filter material area utilized
- Extends filter life and efficiency
Discount:
Buy 10 sets or more and contact us for a better price
| Filter Type / EN 779 | ISO 16890 | >10 µm | PM10 | PM2.5 | PM1 | Gas/LOI | Typical Pollutants |
|---|---|---|---|---|---|---|---|
| G1 | ISO Coarse | ~40% | <10% | ~0% | ~0% | Large dust: sand grains, textile fibers, carpet lint, plant residues, insect parts, etc. | |
| G2 | ISO Coarse | ~50% | <15% | ~0% | ~0% | Sawdust, hair, large fabric shreds, paint chips, surface rust particles. | |
| G3 | ISO Coarse | ~60% | <25% | ~5% | ~0% | Larger household dust, lint, animal hair, some airborne pollen. | |
| G4 | ISO Coarse | 65-75% | 25-35% | 10-15% | <5% | Larger pollen grains, soil and sand impurities, textile fibers. | |
| M5 | ISO ePM10 ≥50% | ~80% | 50–65% | 20–30% | 10–15% | Most pollen, mold spores, pet dander, typical house dust. | |
| M6 | ISO ePM10 (60–80%) | ~90% | 65–80% | 30–45% | 15–25% | Construction material dust, concrete and cement powders, ash and other friable material particles. | |
| F7 | ISO ePM2.5 (50–65%) | >90% | 75–90% | 50–65% | 30–45% | Some bacteria, smog and tobacco smoke particles, combustion product dust, mold spores, wildfire smoke. | |
| F8 | ISO ePM2.5 (65–80%) | >95% | 85-95% | 65–80% | 45-60% | Fine fungal spores, airborne pollutant aerosols and other fine solid particles. | |
| F9 | ISO ePM1 (80-95 %) | >95% | >95% | >90% | 80-95% | Diesel engine soot, some airborne viruses, transport and industrial fumes, very fine combustion particles, extremely fine dusts and secondary organic aerosols formed from chemical reactions in the atmosphere. |
